V-Cell filters 60%-98% efficiency

V-Cell filters 60%-98% efficiency

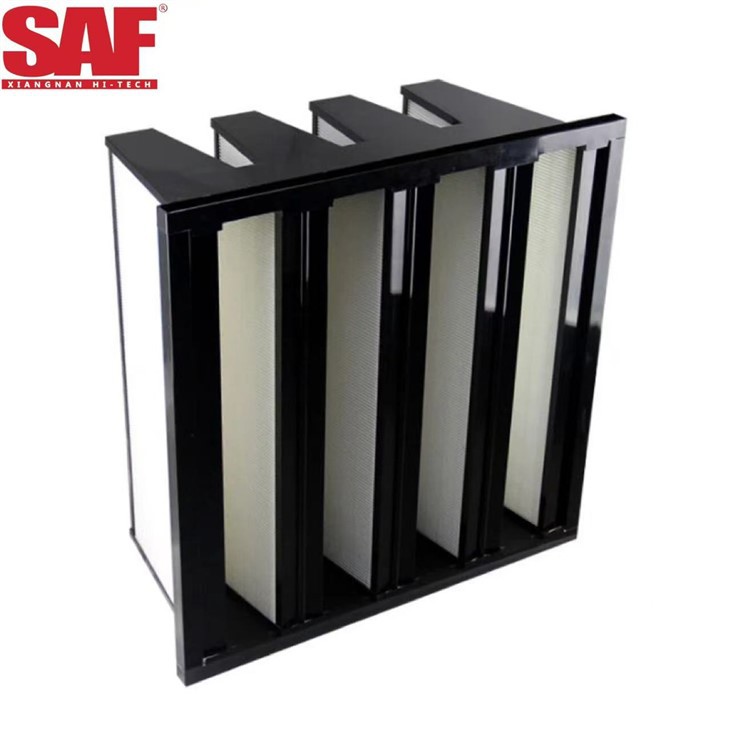

Large Air Volume 4 V Filter 1, Live Picture: 2, Overview details: Double Faceguard one both sides of the media. Sealant: Gel-Glue Media separator: Hot melt glue line. 3, Package: Poly bag, cardboard carton, wooden case. 4, We focus on customized design.
Chat Now

Product Details

Extended surface self-supported V-Cell filter:
V-CELL externde surface self- suppported V-cell filters are designed for use in air filtration systems and equipment where medium to high efficiency filtration is required. Available in a variety of standard sizes and efficiencies The V-CELL provides optimal performance in variable air volume systems.

Injection molded polypropylene frame. thermally bonded polypropylene media separators and V-shape construction provides strength and rigidity to this product.

The media pack, comprised of 100% polypropylene fibers, is bonded to the inside perimeter of the enclousure frame by a thermo plastic, hot-melt adhesive, providing a continuous and positive seal.

The all synthetic composition of frame, media pack and separator are not adversely affected by moisture and do not support the growth of microbial organisms such as bacteria, mold and funfi, etc.

The standard offering is rated by underwriters Laboratories as class II , per UL Standard 900.

Our V-Cell filter is designed so as to work suitably within built up filter banks and/or side systems. The standard offering includes a single, molded 7/8" header.

Rigid construction, extended surface, low initial pressure drop measured in inches w.g., long service life and savings in energy costes are features and benefites which make our V-CELL and excellent option for meeting the requirements of medium to high efficiency filtration

Model Dimension Airflow(m3/h)

Initial Resistance(Pa)

Efficiency(%) Filter Media
XN-TRU1 287*287*292 800 ≤125 95(F8)/99(F9) Glass or Synthetic Fiber
XN-TRU2 490*287*292 1200 ≤125 95(F8)/99(F9)
XN-TRU3 490*490*292 2000
≤125 95(F8)/99(F9)
XN-TRU4 592*490*292 2000 ≤125 95(F8)/99(F9)
XN-TRU5 592*490*292 2700 ≤125 95(F8)/99(F9)
XN-TRU6 592*287*292 1600 ≤125 95(F8)/99(F9)
XN-TRU7 592*592*292 2400 ≤125 95(F8)/99(F9)
XN-TRU8 592*592*292 3200 ≤125 95(F8)/99(F9)

V Cell Filter Feature:
◢Non-shedding, gradient density polypropylene media

Polypropylene injection molded frame with no metal components

Polypropylene thermally bonded pleat separators

Available in 65%, 85%, 95%, and 98% efficiencies per ASHRAE 52.1

Click on picture for Spec Sheet

Characteristic. Media: Synthetic polypropylene microfiber Continuous polypropylene spacer beads thermally bonded to both sides of media. Frame: 100% polymer, no metal component frame to media adhesive: SOlid, water-resistant adhesive.

Notes: UL 900, Class 2 Initial Resistance: @500 FPM: 0.36 w.a

Available with the following gasketing option: GU-Gaket Upstream GD-Gasket Pownstream G5-Gasket Sides An example of the part number. with options is: AFV65-4412G1

V cell air filter
